RECAST: Recasting Vision-Language Semanticsinto an Actionable Cost Map for Robot Navigation

What RECAST Does 1× speed

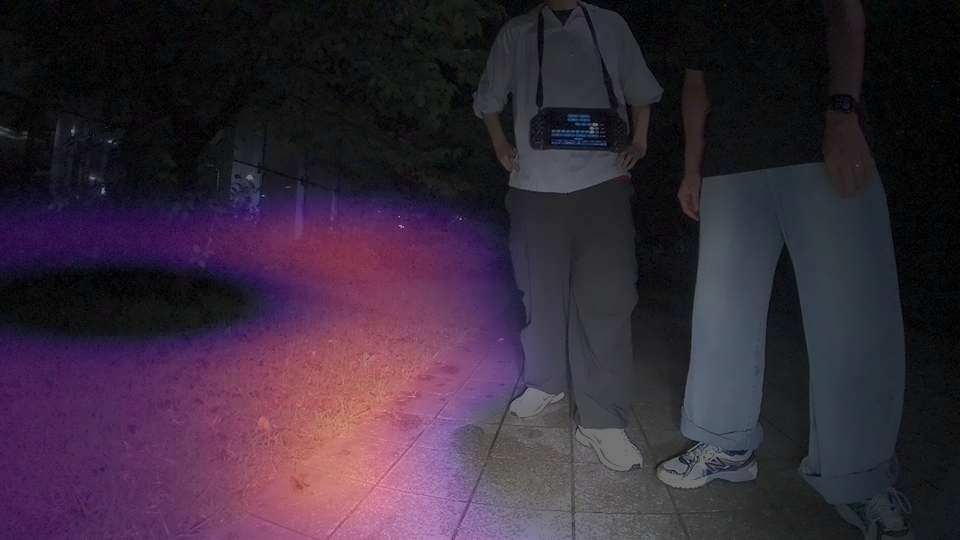

RECAST turns what a VLM reads from the scene and what the user asks into one cost map of ground safety, collision risk, goal direction, and passable gaps, grounded into geometry, and the robot chooses its path on that same map, so reasoning and motion stay strongly aligned.

RECAST Pipeline

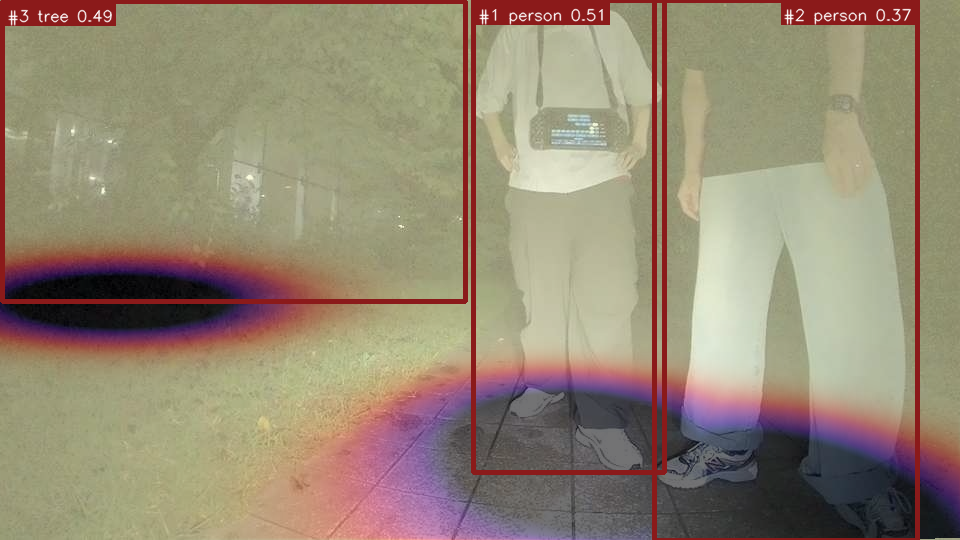

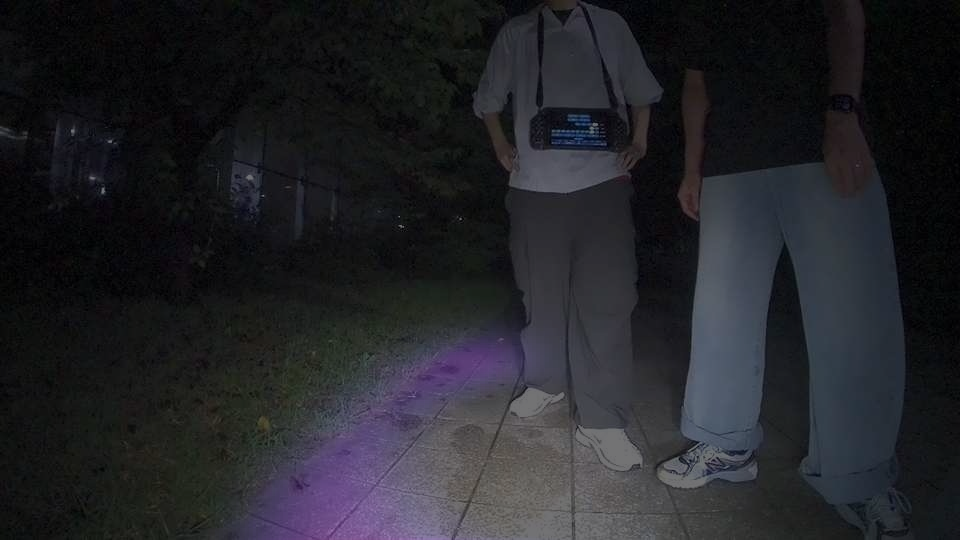

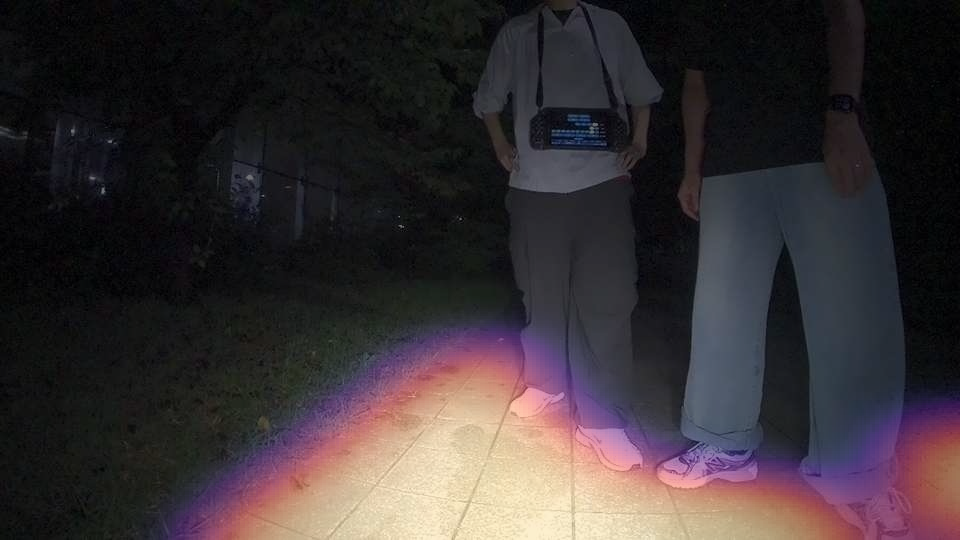

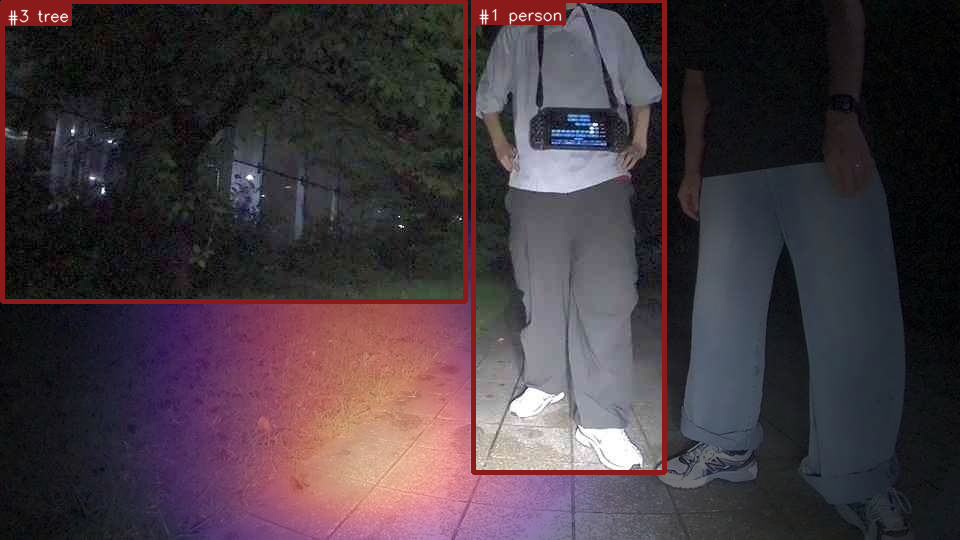

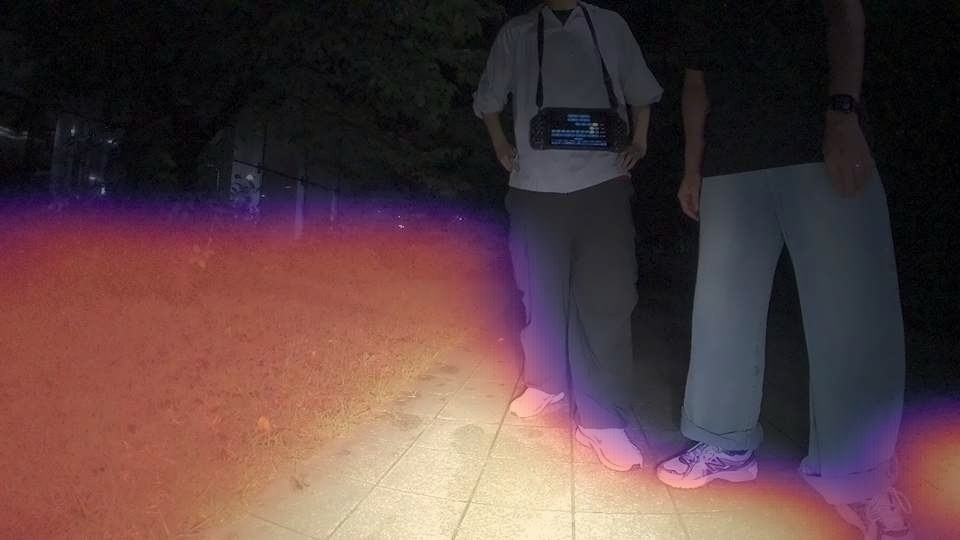

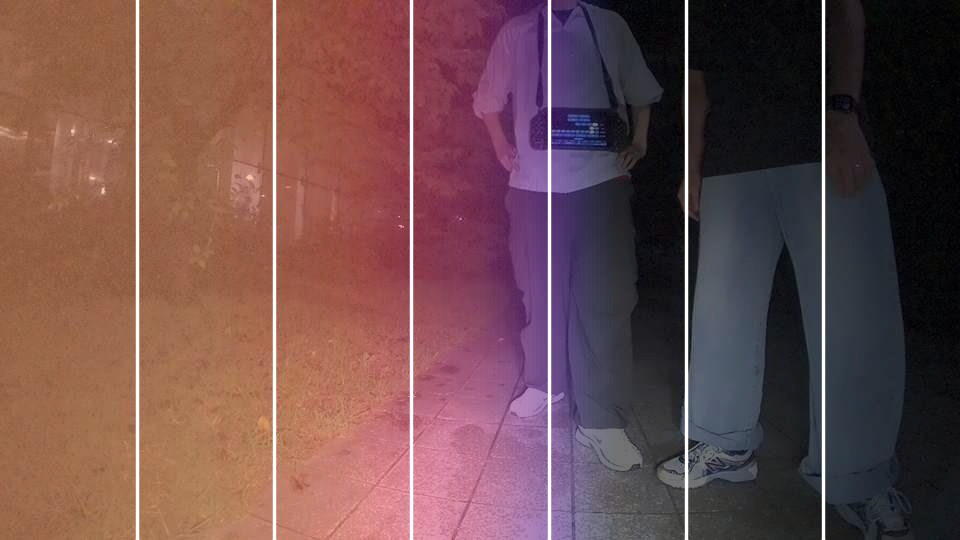

A VLM recasts the pivot frame (red) and the instruction into four judgments, which expert vision models ground into component cost maps and compose into the pivot Cost map. Each current frame (green) rebuilds only the traversability and keep-out components without a new VLM call, and the decoder's candidate trajectories are scored on both maps before the best one is executed.

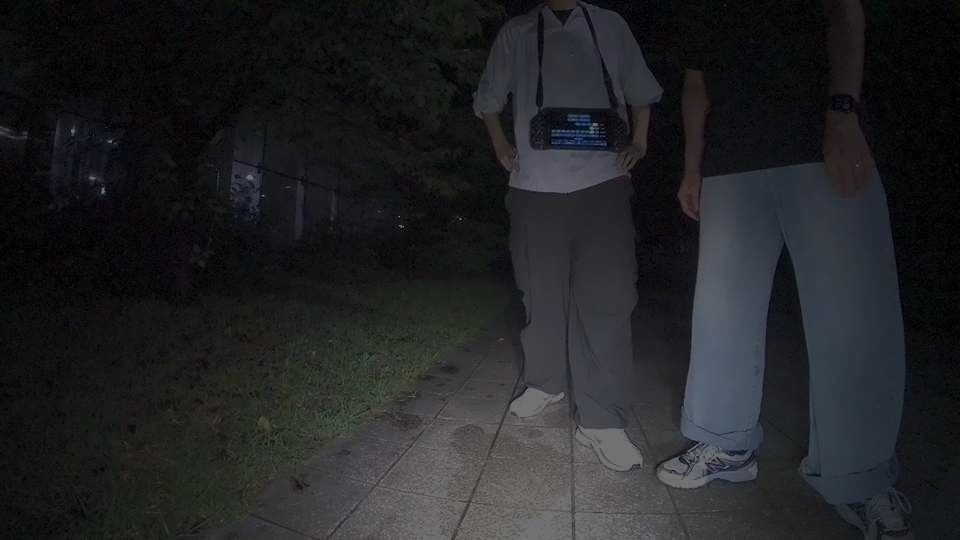

Real Robot Experiment

Click an episode to watch the run.

Ablation

Add one sentence, and RECAST reads the same scene differently and moves differently, with no retraining.

Additional Instruction AAdditional Instruction B

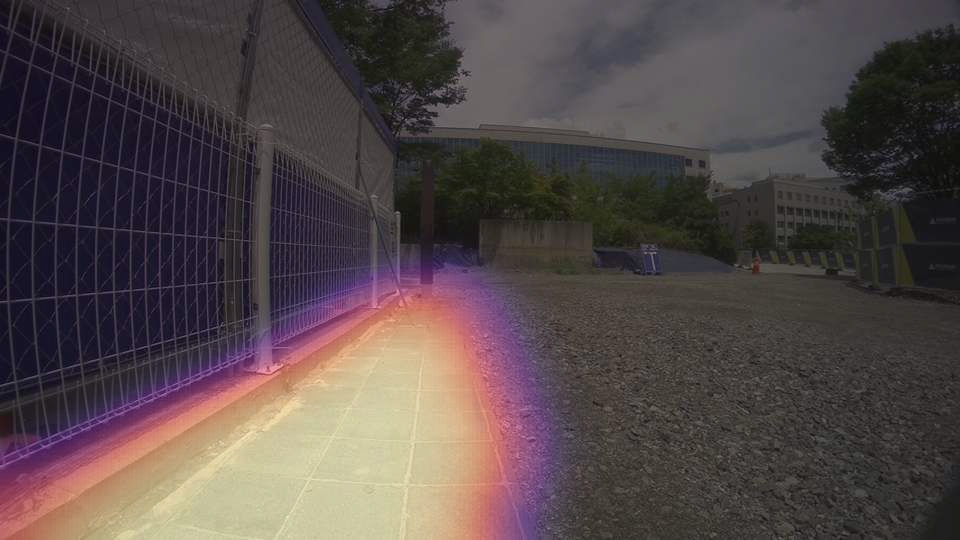

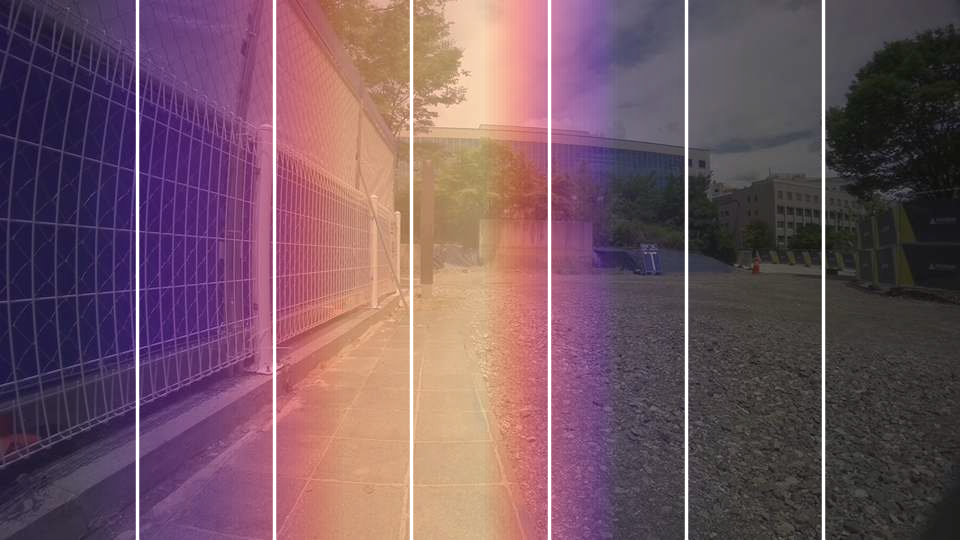

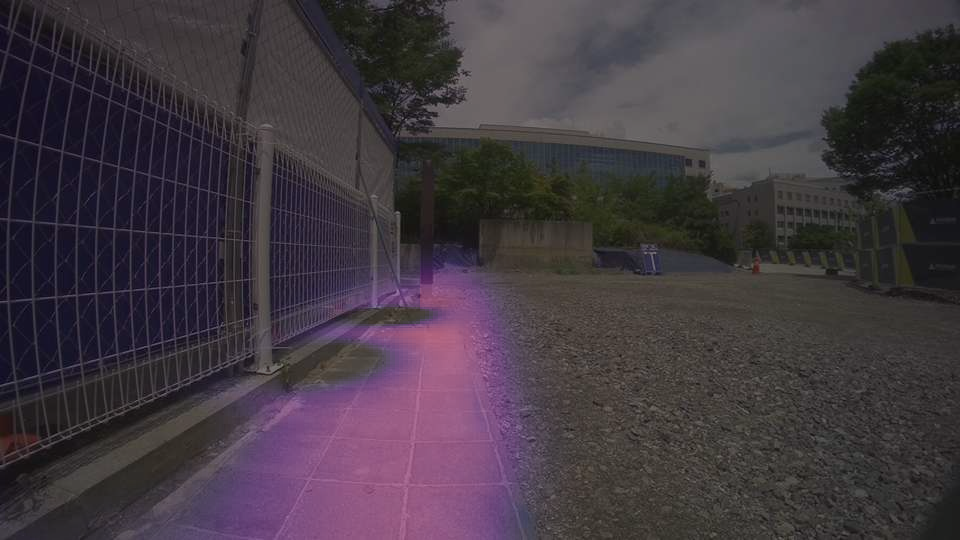

“ Stay on the paved sidewalk ”
1
3
8
9
1
0
0
Non-Traversable
Traversable

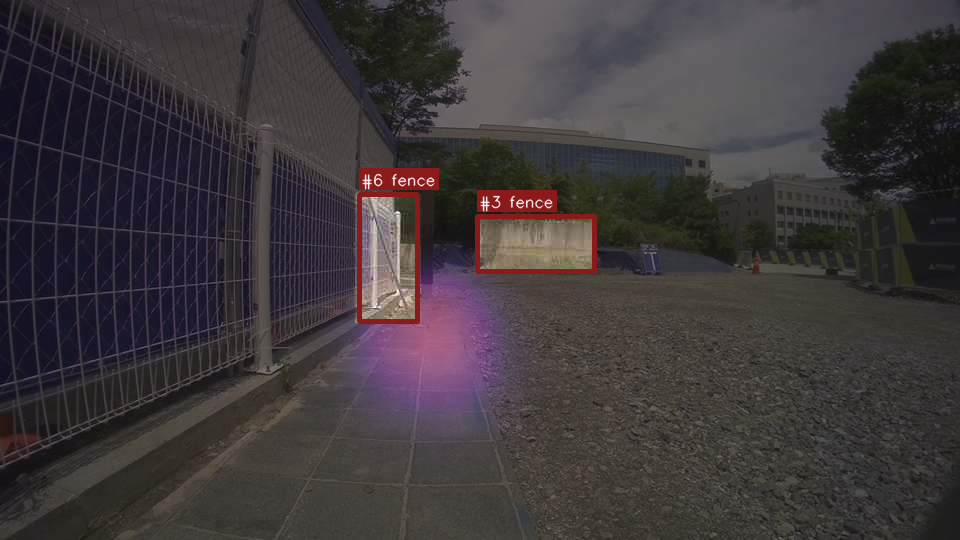

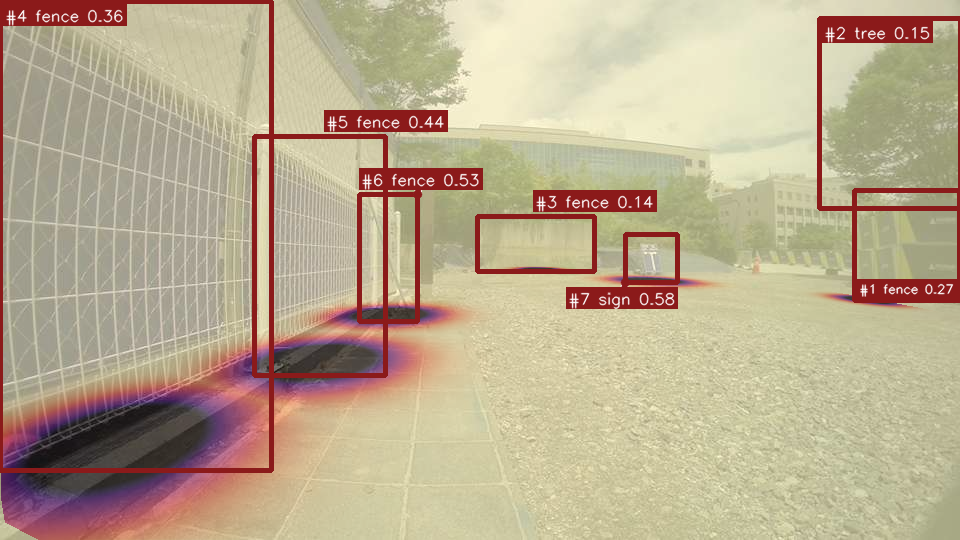

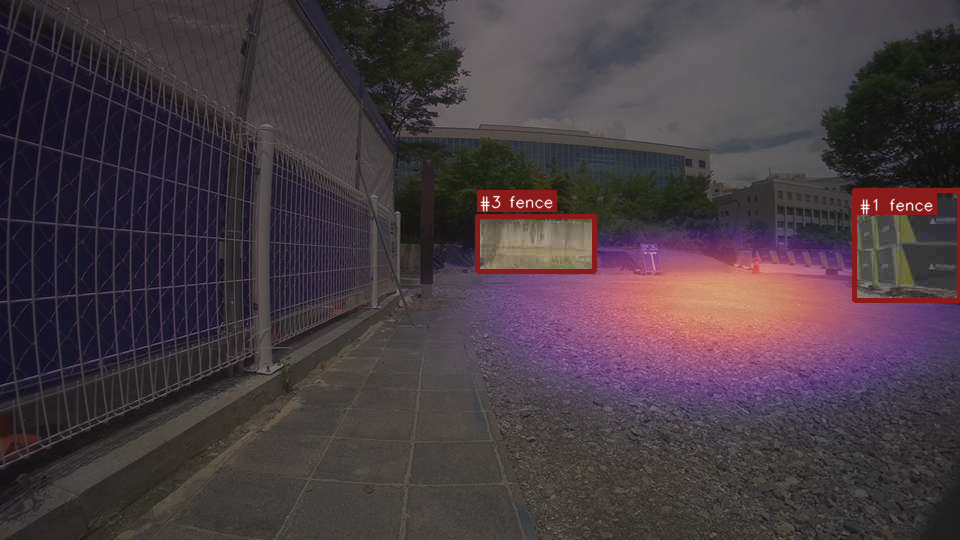

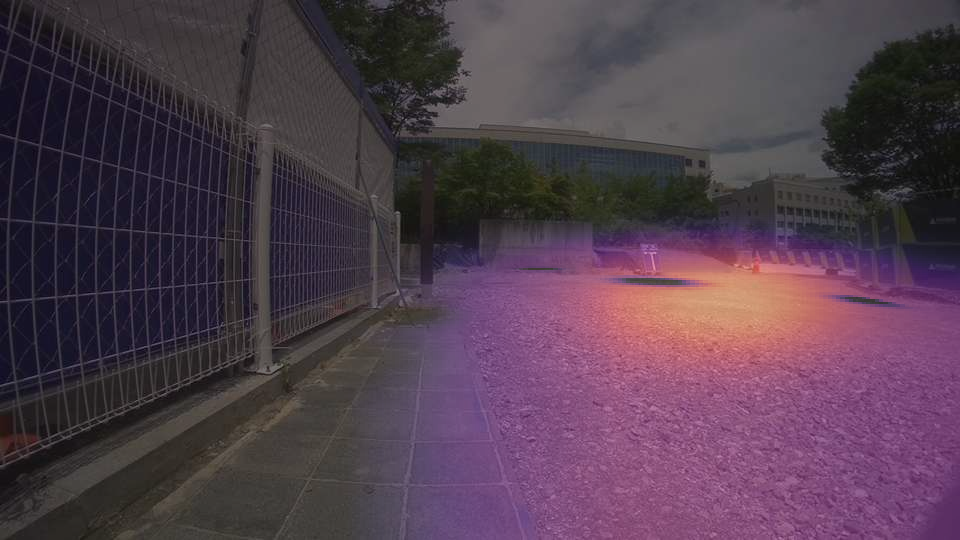

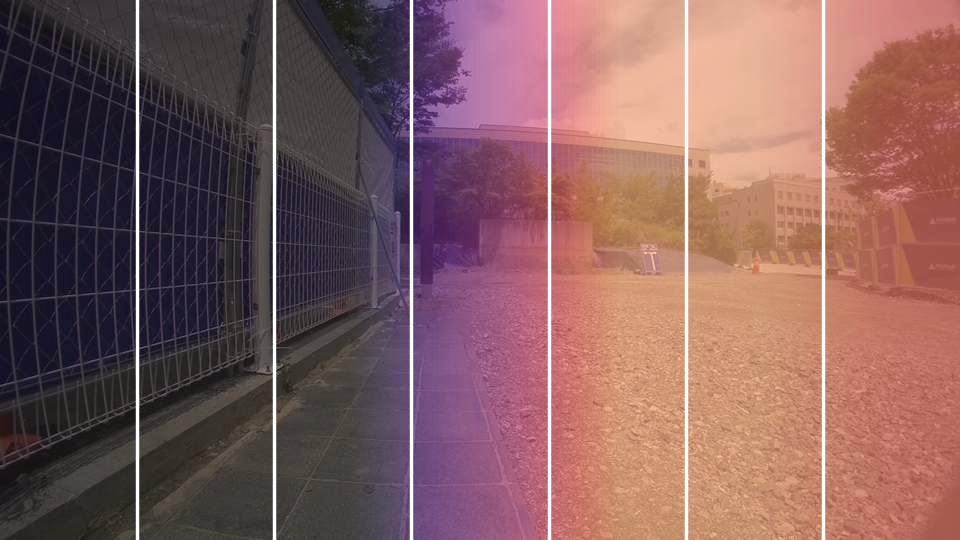

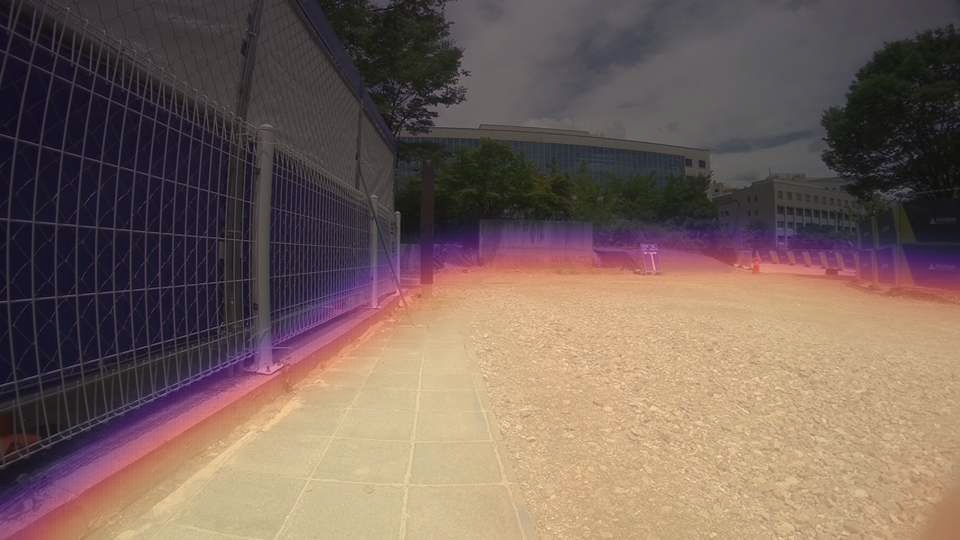

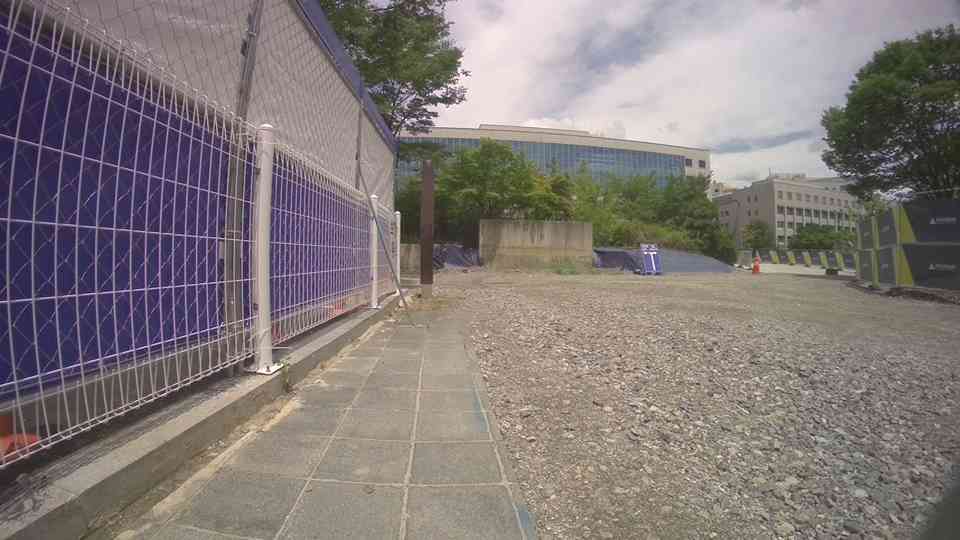

“Stay far from the construction fence, step onto gravel if needed”
0
0
0
4
8
8
7
Non-Traversable
Traversable
